RGB Programmable LED Pixel Controller 4096 Pixels With Sd Card

Place of Origin : China

Packaging Details : Standard export packaging

Price : Negotiation

Certification : CE

Model Number : pixel controller

MOQ : Negotiation

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 3-10days

Lighting solutions service : Lighting and circuitry design, Project Installation

Type : LED Programmable Controllers

Max. Load Power : 4096pixel

Conneccommon anodetion Mode : common anode

Product name : T-4000S

Application : LED light programming control

Product size : L180*W120*H31mm

Controllable pixels : 4096 pixels

Keyword : Programmable Controllers

Support IC : Ws2811/ws2801/ucs1903/sm16716/lpd6803/lpd8806/p9813

Contact Now

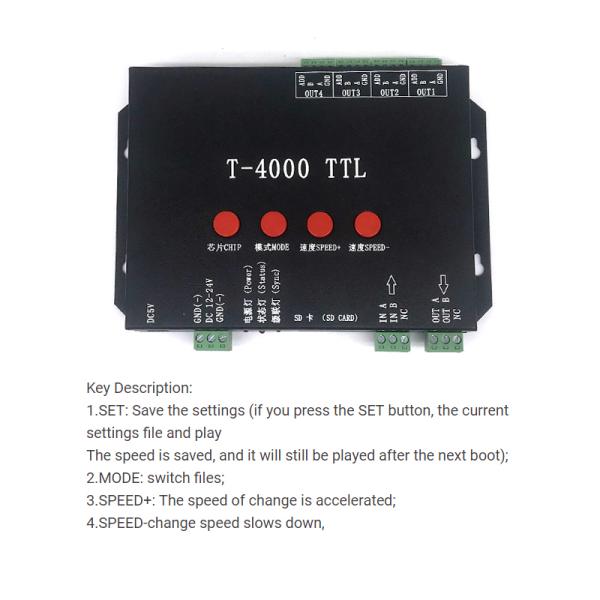

T-4000 Tll Rgb Programmable Led Pixel Controllers With Sd Card For Ws2811 1903 Led Digital Pixel Strip Light

T-4000 TLL Programmable LED Controller

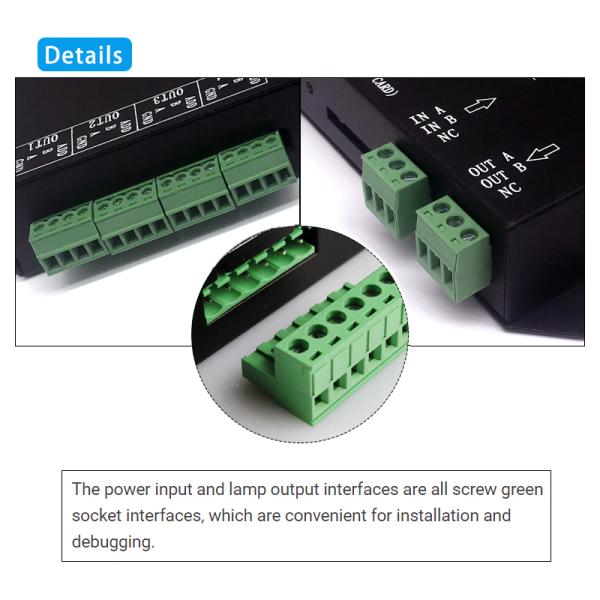

4-port output / 4096 pixels in total / max 1024 pixels per port

T-4000 TLL LED RGB Programmable Controllers with SD Card for sk6812 WS2812B WS2811 WS2801 LP6803 led digital pixel strip light

Features:

256 Gray level, Support software Gamma correction
Support the rules and special-shaped handle.
Four-port output, every port can support 512-1024 pixels
Off-line(SD Card) control, play back content stored in the SD card.
The controller Can save up to 16 files ,copy the file into SD card in order.
The file in SD card must be named: 00_1.led, 01_1.led, 02_1.led…….
Compatible with single and dual IC, if you control a single line IC LED lights, without being connected to the CLK line.
Application: Used for controlling the led strip, such as 2801, 2811.
Four-port output ,each can support 1024 pixels, total control 4096 pixels.
LED pixel controller, support point, line, surface, rules and special-shaped handle.
T-4000 store a maximum of 16 programs, copy multiple files to the SD card,a nd then insert the card to T-4000.

Basic parameters:

1. Input voltage: DC5V

2. Product size: L180*W120*H31mm

3. Packing size: L200*W130*H40mm

4. Net weight: 620g

5. Gross weight: 650g

6. Working temperature: -30~85°C

7. Controllable pixels: 4*1024 pixels

8. Power: 1W

Package:

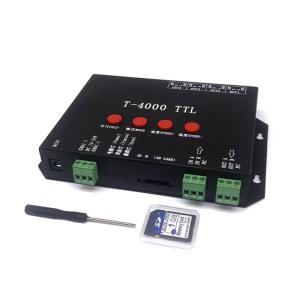

1*T-4000 TLL Controller

1* 1GB SD Card

*Dear friends, if you have any questions, you need to consult. Please feel free tocontact us online

Product Description

RGB Programmable LED Pixel Controller 4096 Pixels With Sd Card
