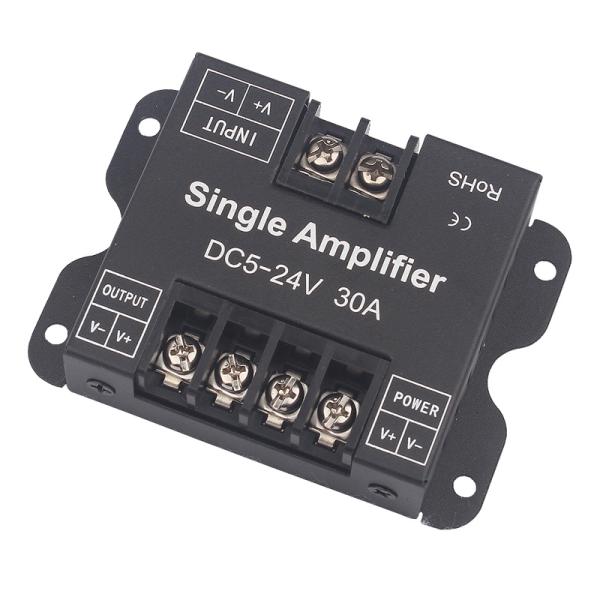

30A Iron Case LED Strip Amplifier Single Color Dimming For Monochrome Light Strip

Product Categories

LED Pixel Strip Light [19]
LED RGB Strip Light [18]
Single Color LED Strip [22]
Adjustable Color Temperature LED Strip [6]
LED RGB Controller [32]
LED Mini Controller [25]
LED Controller Dimmer [27]
LED Strip Smart Controller [40]
LED Pixel Controller [29]
LED Strip Amplifier [9]
LED COB Strip Light [7]
LED Neon Strip Light [7]
S Shape LED Strip [6]
LED DMX Decoder [7]
Switch Power Supply [40]

ShenZhen Million-tech Co., Ltd.

Contact Now

30A Iron Case LED Strip Amplifier Single Color Dimming For Monochrome Light Strip

Place of Origin : China

Certification : CE

Packaging Details : Standard Neutral Carton packing 100pcs/box

Price : negotiation

Model Number : Amplifier

MOQ : negotiation

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 3-10days

Warranty(Year) : 1-Year

Lighting solutions service : Lighting and circuitry design, Project Installation

Max. Load Power : 720W

Product name : single high speed amplifier

Application : Monochrome light strip

Color : black

Input Voltage : DC5V-DC24V

Output power : 5V:<150W;12V:<360W; 24V:<720W

Working temperature : -20-70

Output Current : 30A

Output signal : PWM

Function : LED controller signal amplification

Contact Now

30a Led Strip Amplifier Iron Case Single Color Dimming Signal Amplifier Dc Repeater

DC5-24V 30A Single Color LED Amplifier Signal Repeater 1CH 1 Channel Dimmer Power Amplifier for White LED Strip Lights

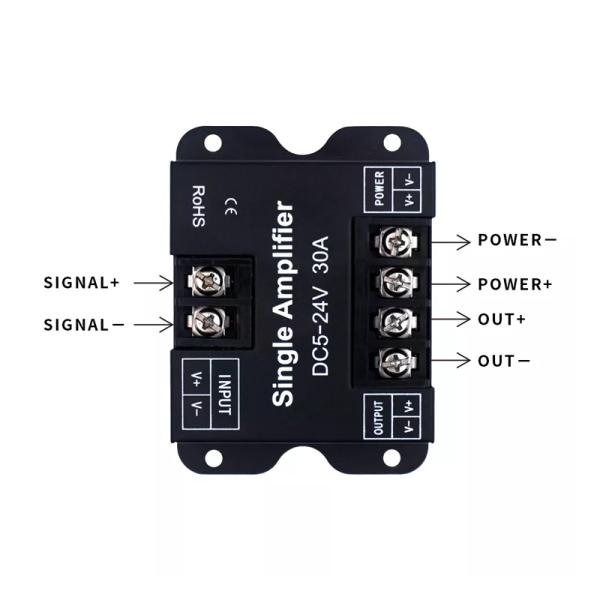

1-channel data repeater/amplifier for single color LED light strips and modules Compatible with PWM (pulse width modulation) technology Supports 5-24V DC, 30Amps max. Durable metal housing construction with mounting flange For use with single color LED strips connected in series end-to-end Durable construction and easy-to-use, this simple data repeater/amplifier is great for applications that require connecting LED strips end-to-end or where the load exceeds the PWM dimmer’s capacity. With a 30A maximum output current, it is especially suited for projects involving high output lighting. Specifications:

item	value
Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design, Project Installation
Product Weight(kg)	0.13
Place of Origin	China
	Guangdong
Brand Name	Lebeisenf
Type	MANUAL SWITCH
Max. Load Power	720W
Connection Mode	screw
Product name	single high speed amplifier
Application	Monochrome light strip
Color	black
Input Voltage	DC5V-DC24V
Output power	5V:<150W;12V:<360W; 24V:<720W
Working temperature	-20-70
Certificates	CE ROHS
Output Current	30A
Output signal	PWM
Function	LED controller signal amplification

Product Description

30A Iron Case LED Strip Amplifier Single Color Dimming For Monochrome Light Strip
